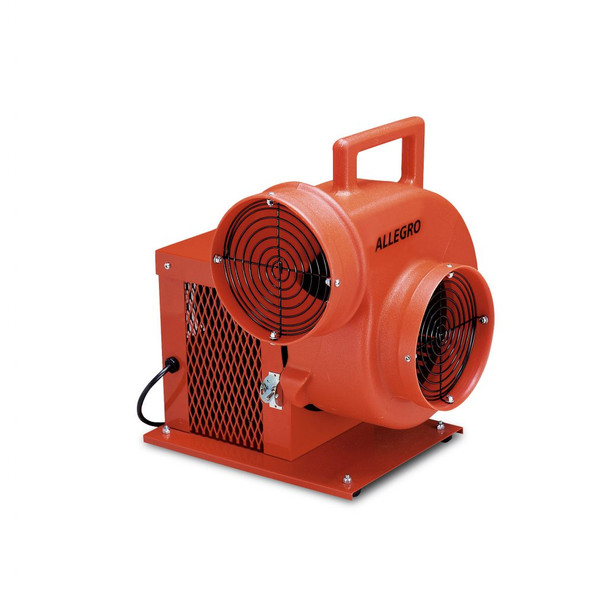

Smart Compact design allows for easy use and storage without sacrificing airflow. Two 8” ports offer positive ventilation or fume extraction. A powerful ¾ HP electric motor. Works great with generators. Air delivery certified CEESI.

CONSTRUCTION:

• 8” Flange on intake and exhaust side
• Tough “safety orange” Polyethylene construction
• One piece housing with integrated handle
• Steel fan wheel with aluminum hub
• Steel zinc plated grill
• Black powder coated 16-gauge steel base
• Equipped with four (4) rubber feet

MOTOR:

• HP: 3/4 HP, UL Listed, CSA Certified
• Voltage: 220 VAC, single Phase, 50 Hz
• Max RPM: 2850 (Loaded at 220 Volts, 50 Hz)
• Current Draw: 6A (Loaded at 220 Volts, 50 Hz)
• Cord: 6.5’ 16/3 AWG, SJTW-A Thermoplastic90C 300V Medium Duty
• Switch: Toggle ON/OFF with guard
• Plug: NEMA 5-15 Three-prong plug

DUCTING: (Optional)

• Yellow Single-Ply Lightweight Vinyl/polyester, PVC-coated
• 150° F temp-resistant
• Retractable, Non-collapsible design
• Hard drawn spring steel wire helix

DIMENSIONS:

FLOW RATES: (CFM calculated using 15’ (4.57 m) of 8” (20.3 cm) ducting)
