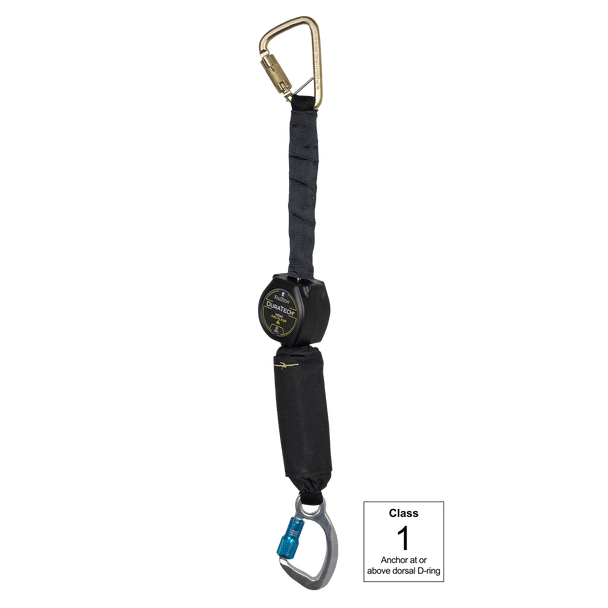

FEATURES

• Kevlar® web lifeline protects against Arc Flash hazards
• Energy absorber features Nomex® ViewPack® cover with inspection window and WrapPack label protection.
• Features internal locking pawls and external energy absorber for even deceleration
• Nylon housing provides impact resistance in most worksite conditions
• Plated steel swivel-eye helps to prevent lifeline twisting and provide smooth operation
• Features alloy steel carabiner anchorage connector with Kevlar® extension for lift connections
• Includes aluminum alloy dorsal connecting carabiner
• May be anchored up to 3' below the dorsal D-ring for user's weighing up to 310 lb max
• Complies with ANSI Z359.14-20121 Class 1 SRL-P and ASTM F887-20. Learn more!

MATERIAL SPECIFICATIONS

• Webbing: Kevlar®; 4,500 lb min.
• Energy Absorber: Polyester tear-away
• Anchorage Connector: Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength
• Dorsal Connector: Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,600 lb min.
• ANSI SRL Class/Type: Class 1 SRL-P
• Avg. Arrest Force: 900 lb
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 42"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.

DOWNLOADS

• Declaration of Conformity
• Sell Sheet/Brochure
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502 and 1910.66
2. ANSI Z359.14-2021
3. ASTM F887-20
