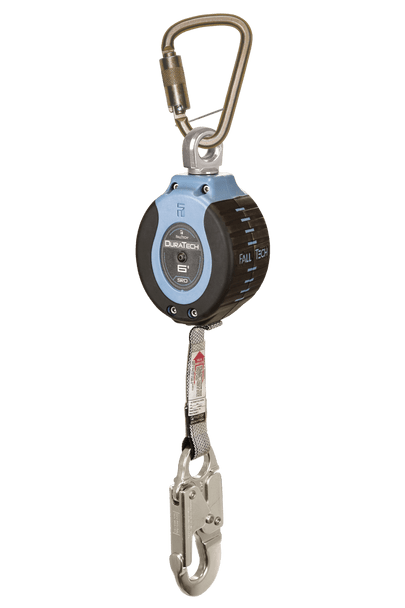

FEATURES

• Internal inertial braking system provides smooth deceleration with minimal fall forces
• Dyneema® web lifeline resists abrasion while providing trusted strength
• Overmolded glass-filled nylon housing contributes unmatched impact resistance
• Integrated aluminum alloy swivel-eye helps to prevent lifeline twisting for smooth operation
• Features aluminum alloy snap hook anchorage connector
• Includes alloy steel dorsal connecting carabiner
• May be anchored up to 2' below the dorsal D-ring for users weighing up to 310 lb max
• Complies with ANSI Z359.14-2014

MATERIAL SPECIFICATIONS

• Webbing: Dyneema®/Polyester blend; 4,500 lb min.
• Anchorage Connector: Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength
• Dorsal Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,000 lb min.
• ANSI SRL Class: Class B
• Avg. Arrest Force: 900 lb
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 54"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Spec Sheet

COMPLIANT WITH

• OSHA 1926.502 and 1910.66
• ANSI Z359.14-2014
