FEATURES

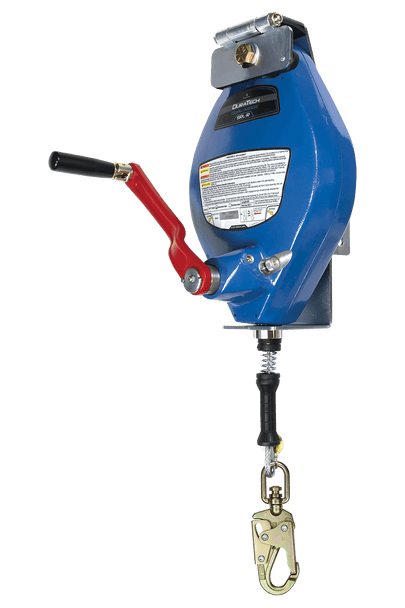

• Delivers reliable 3-way operation an SRL and a Retrieval Winch for emergency rescue
• Heavy-duty, lightweight and corrosion resistant cast aluminum housing construction.
• Features rugged Internal inertial braking system with dual disc brakes
• 3/16" stainless steel cable lifeline with load-indicating swivel snap hook
• Features integrated proprietary tripod leg mounting bracket
• Includes 20" weather-resistant storage bag
• Meets OSHA 1926.502 and 1910.140 regulations

MATERIAL SPECIFICATIONS

• Cable: 3/16" stainless steel; 3,400 lb min. static strength
• Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• Housing and Drum: Machined aluminum alloy

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,000 lb min.
• Avg. Arrest Force: 1,125 lb
• Max Arrest Force: 1,800 lb
• Max Arrest Distance: 54"
• OSHA User Capacity: 130 to 310 lb max.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502 and 1910.66
