FEATURES

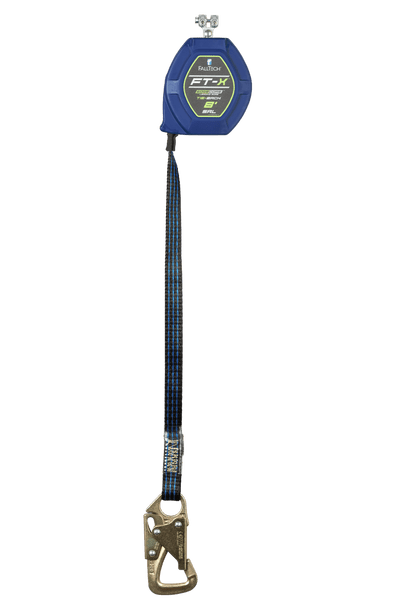

• This item is a replacement-leg unit for a twin-leg SRL. This item cannot be used alone.
• Replacement retractable part number for 84108TP8S
• Features SpeedLink™ field replaceability of damaged retractable units, lowering overall cost of ownership and reducing equipment down time. Request SpeedLink™ Spanner Tool
• Features steel snap hook leg-end connectors with 5,000 lb rated gate for tie-back applications
• Complies with ANSI Z359.14-2021 Class 2 SRL-P. Learn more and download White Paper

MATERIAL SPECIFICATIONS

• Lifeline: EdgeCore™; 5,000 lb min. static strength
• Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,600 lb min.
• ANSI SRL Class: Class 2 SRL-P
• Avg. Arrest Force: 1,350 lb max.
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 42"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 420 lb max.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity (ANSI)
• Declaration of Conformity (CSA)
• Sell Sheet/Brochure
• FT-X™ EdgeCore™ Tie-Back Flyer
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502 and 1910.66
2. CSA Z259.2.2-2017
3. ANSI Z359.14-2021
