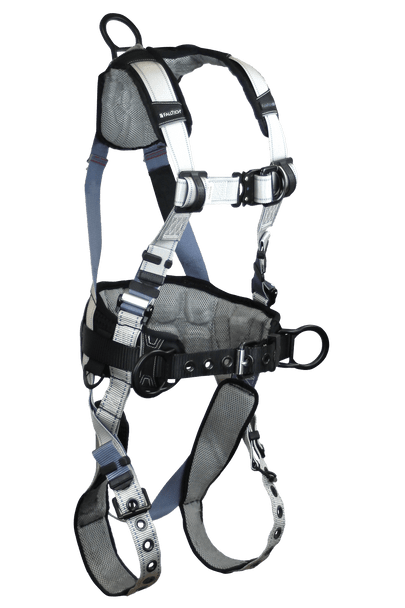

FEATURES

• Lightweight Flowscape® shoulder yoke, sub-pelvic leg, and 7" waist support positioning pads deliver evaporative breathability
• Proprietary dorsal attachment sleeve supports effortless addition of personal SRLs.
• Exclusive aluminum camlock torso adjusters provide simple and secure upper-body fit
• Features lightweight forged aluminum alloy dorsa, hip, and sternal D-rings
• Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit
• Quick-connect chest buckle features visual indicator showing positive connection
• Waist support pad features paired tool tether connection rings for tools weighing up to 5 lb
• Meets OSHA 1926.502 and 1910.66 Regulations

MATERIAL SPECIFICATIONS

• Webbing: Polyester; 5,000 lb min. static strength
• D-rings: Aluminum alloy; 5,000 lb min. static strength
• Buckles and Adjusters: Aluminum alloy and plated alloy steel; 3,372 lb min. static strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,600 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

AVAILABLE SIZES

• 7088BFDS - Small
• 7088BFDM - Medium
• 7088BFDL - Large
• 7088BFDXL - XL

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Sell Sheet/Brochure
• Harness Sizing Chart
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502 and 1910.66
