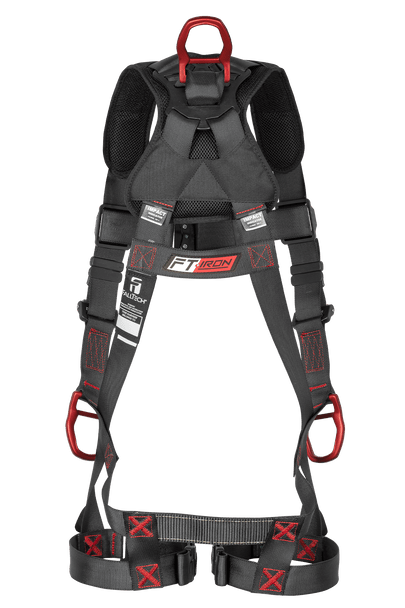

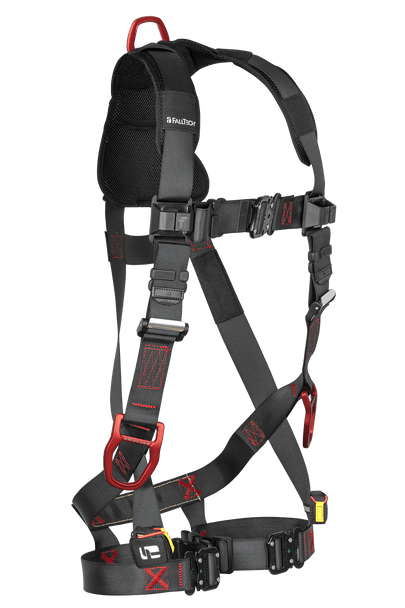

FEATURES

• New ergonomic lateral leg straps and construction greatly improve comfort and mobility. No more disconnecting leg straps when not in use.
• Reinforced sub-pelvic strap features durable wear pad for extended product service life
• Features integral tri-layer padded shoulder yoke to provide breathable user comfort
• Updated SRL connection point allows for fast, hassle-free attachment of all types of single and twin SRLs
• Durable lanyard keeper design improves versatility and reusability while maintaining ANSI compliance
• Quick-connect chest buckle features visual indicator showing positive connection
• Includes fully adjustable suspension trauma relief system
• Complies with ANSI Z359.11-2021

MATERIAL SPECIFICATIONS

• Webbing: Polyester; 5,000 lb min. static strength
• D-rings: Aluminum alloy; 5,000 lb min. static strength
• Buckles and Adjusters: Aluminum alloy and plated alloy steel; 3,372 lb min. static strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,600 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

AVAILABLE SIZES

• 8142QCXS - XS
• 8142QCSM - Dual-size Small/Med
• 8142QCLXL - Dual-size Large/XL
• 8142QC2X3X - Dual-size 2X/3X

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Declaration of Conformity (CSA)
• Sell Sheet/Brochure
• FT-One™ Flyer
• Comfort Legs Fitment Guide
• Harness Sizing Chart
• Spec Sheet

COMPLIANT WITH:

1. ANSI Z359.11-2021
2. CSA Z259.10-2018
3. OSHA 1926.502 and 1910.66
