FEATURES

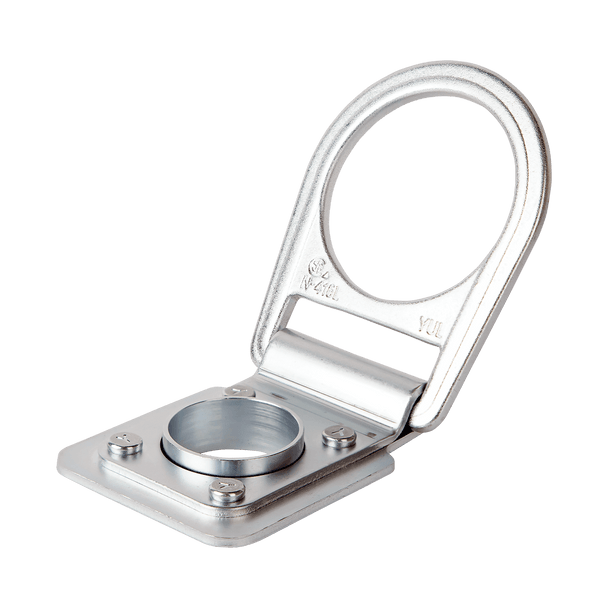

• Features alloy steel anchoring plate with alloy steel connecting D-ring
• Precision-cut bushing provides 360° D-ring rotation.
• For temporary use on exposed #10 rebar and 1-1/8" threaded rod
• Anchor requires user-supplied rebar wing nut or hex nut for installation
• Features reusable anchoring plate and D-ring
• Complies with ANSI Z359.18-2017

MATERIAL SPECIFICATIONS

• Anchoring Plate: Plated alloy steel
• D-ring: Plated alloy steel; 5,000 lb min. static strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Spec Sheet

COMPLIANT WITH:

1. ANSI Z359.18-2017
2. OSHA 1926.502 and 1910.66
