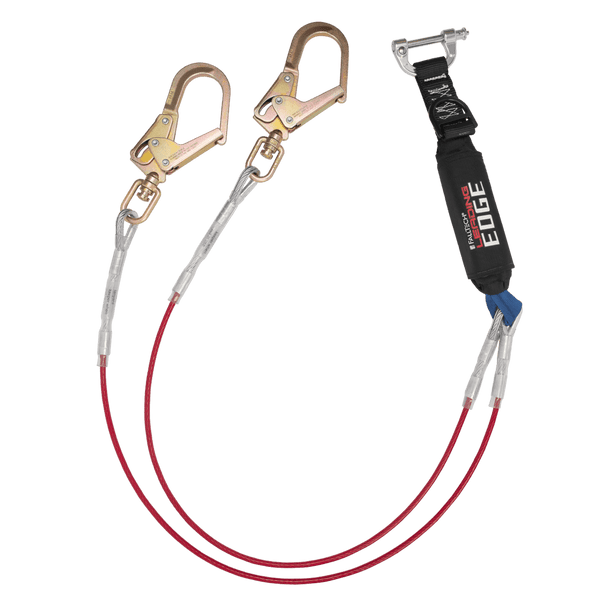

FEATURES

• Dual-class energy absorber provides 12' foot-level and 6' overhead free fall applications for users weighing up to 310 lbs
• Hard-wearing 1/4" steel cable resists cuts over sharp and abrasive leading edge hazards.
• Features exclusive aluminum alloy dorsal connector for harness attachment and swivel rebar hooks for anchorage connections
• Includes integral D-ring for transitional connection to an SRL
• Energy absorber features patented ViewPack® cover with inspection window and WrapPack label protection
• Swivel rebar hooks feature transverse load rated gates with 2" open capacity
• Double-leg design facilitates 100% tie-off
• Energy Absorber complies with ANSI Z359.13

MATERIAL SPECIFICATIONS

• Cable: Coated galvanized steel; 5,000 lb min. static strength
• Energy Absorber: Polyester tear-away
• Dorsal Connector: Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength
• Anchorage Connectors: Plated alloy steel; 5,000 lb min. static strength and 3,600 lb min. gate strength
• D-ring: Plated alloy steel; 5,000 lb min. static strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 5,000 lb min.
• ANSI Lanyard Class: 6' free fall and 12' free fall
• Max. Arrest Distance: 48" for 6' free fall and 60" for 12' free fall
• Avg. Arrest Force: 900 lb for 6' free fall and 1,350 lb for 12' free fall
• Max. Arrest Force: 1,800 lb for both 6' and 12' free fall
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502 and 1910.66
