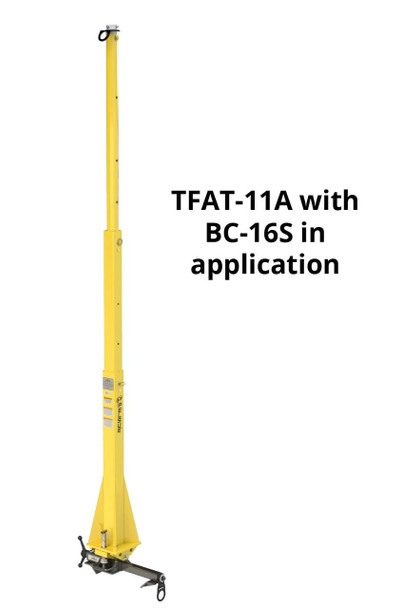

The Pelsue Expandable Fall Arrest Post (TFAT-11A) telescopes from 7' to 11' via a pin attachment, offering an adjustable anchor point without needing a separate expansion accessory. It's rated for single-person tie-off at up to 310 lbs and weighs 75 lbs.

Paired here with the BC-16S Structural Beam Clamp, designed to provide a portable mounting point for a Pelsue fall arrest tower. Telescoping tube sections extend via a speed handle, allowing two angled jaw plates to grip underneath the flange of the structure. It anchors to structures with an outside flange width between 8-3/4" and 16" and a flange thickness of up to 1". Constructed of steel with a durable electroless nickel-plated finish, it's also equipped with a swivel D-ring for use as a stand-alone anchorage point when not paired with a tower.

General Specifications:

• As a portable fall arrest anchorage point: man-rated load capacity at the anchor D-ring is 310 lbs. (141 kg) maximum, single user
• As a portable mounting base for a fall arrest tower (when both products are used per their respective manuals): rating is determined by the fall arrest tower
• Warning: a 900 lb. maximum arrest force (MAF) device must be used as part of a complete fall arrest system; maximum weight of the person on the anchorage is 310 lbs. (141 kg) inclusive of all tools and equipment

Materials & Construction:

• General construction: Welded carbon steel, electroless nickel plating
• Hardware: Grade 5 zinc-plated steel

Weight: 40 lbs. (18.1 kg)

Note: Base plate rating is dependent on the tower it's paired with. For this configuration, that means single-person tie-off, man-rated to 310 lbs, per the TFAT-11A's own rating.
