This bundle covers everything needed to extend the reach of the Pelsue Uni-Lite Fall Arrest Post: the FT-C70 post (9"D x 6'H, 39 lbs, carbon fiber, flexes to absorb fall force via a 360° swivel tie-off), the TFAT-14C Expandable Base Accessory, and a base plate.

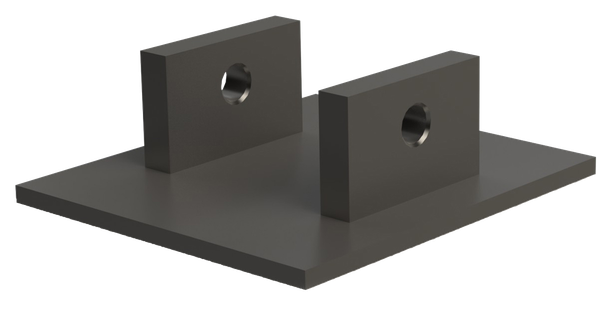

This configuration is paired with the FB-SW1 Weld-On Base Plate, featuring mounting ears for a permanent, welded installation.

FB-SW1 General Specifications:

• Intended to be permanently attached to structural steel members and used for the removable mounting of Pelsue fall arrest towers
• Plate is to be welded to the surface, adhering to all Pelsue guidelines

FB-SW1 Materials & Construction:

• General construction: Welded carbon steel
• Weld certification: AWS - D1.1
• Material: ASTM A36 steel

FB-SW1 Dimensions: Length 9.0" × Width 8.0" × Height 2.9" Weight: 12 lbs. (5.5 kg)

FB-SW1 Strength & Testing Data:

• Torsional proof load: 20,274 ft.-lb. (27,488 N-m) at pin hole center
• Equivalent load and angle: 5,400 lb. (2,449 kg) tensile force applied at a point 55 inches (1.4 m) above pinhole center at 55° off vertical
• Rating: 3-person fall arrest anchorage when used with an approved arrest tower and 900 lb. MAF devices on all connections

An optional Carrying Case is available at checkout.
