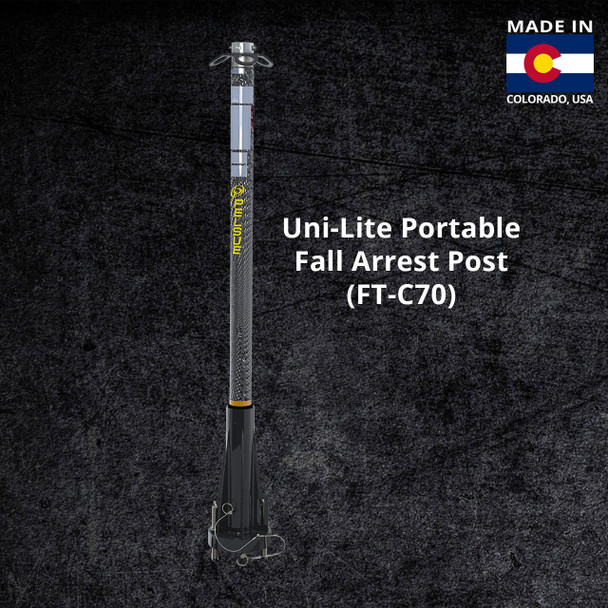

Carbon fiber construction keeps the Pelsue Uni-Lite Fall Arrest Post (FT-C70) light enough to lift and position by hand, while its flexible design absorbs fall force like a fishing rod bending under load. The upper insert supports up to three-person tie-off via a 360° swivel with three 5.8' anchor points. Post dimensions: 9"D x 6'H, 39 lbs.

This listing includes the SB-SM1 4-Arm Manway Base, designed to provide a portable mounting point for the FT-C70. Its four arms pivot independently and are equipped with sliding bolting blocks that secure at any point along the leg's length, allowing it to mount over manways up to 40" in diameter. It's constructed of steel with a powdercoated finish and is only rated for use with the FT-C70.

SB-SM1 General Specifications:

• Approved as a portable mounting base for the FT-C70 when both products are used per their respective manuals
• Note: installing the FT-C70 on the SB-SM1 reduces the allowed number of users from 3 to 2
• A complete fall arrest system must always be employed and rated according to the capabilities of all components used

SB-SM1 Materials & Construction:

• General construction: Welded carbon steel, powdercoated
• Hardware: Grade 8 steel, zinc-plated

SB-SM1 Weight: 42.4 lbs. (19.2 kg)

SB-SM1 Features:

• Portable Fall Arrest Tower base for installation on manways
• Independently pivoting arms and slider blocks allow maximum adjustment
• Folding arms and handle for easy transport or stowage
• Provides an approved mounting base for the FT-C70

An optional Carrying Case is available at checkout.
